THE MOUNT WITHOUT A HOLDER (Choose your Holder Separately)
NO HOLES, NO DRILLING
EASY INSTALL
CUSTOM DESIGN IN SWEDEN
| This Mount Fits | Volkswagen Sharan 11-22 |
| SKU | 654562 |
| Barcode # | 7320286545624 |
| Brand | ClicOn |
| Shipping Weight | 0.1000kg |
Below you will find the installation instructions for the Centre Mount (SKU:654562), you can click on the images to open a larger version in a new tab

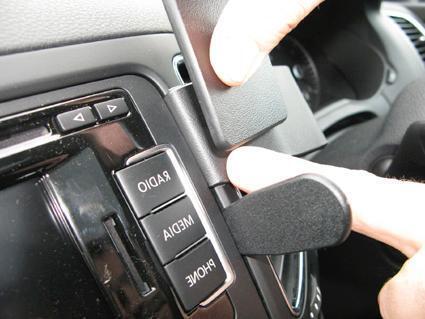

1. Use the enclosed alcohol pad to clean the area where the ClicOn is to be installed. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the air vent and the dashboard, to widen the gap. Peel off the adhesive tape cover on the ClicOn. 2. Press the grooved edge on the right part of the ClicOn into the gap above the gap opener. Press until you hear/feel it snaps into place. Pull out the gap opener. 3. Press the gap opener into the gap between the frame surrounding the air vent and the stereo. Press forward on the left side of the ClicOn so the angled edge goes all the way into the gap above the gap opener. Pull out the gap opener.
