THE MOUNT WITHOUT A HOLDER (Choose your Holder Separately)
NO HOLES, NO DRILLING
EASY INSTALL
CUSTOM DESIGN IN SWEDEN
| This Mount Fits | Toyota Corolla Year(s):02-07 |
| SKU | 653020 |
| Barcode # | 7320286530200 |
| Brand | ClicOn |
| Shipping Weight | 0.1000kg |
Below you will find the installation instructions for the Angled Mount (SKU:653020), you can click on the images to open a larger version in a new tab

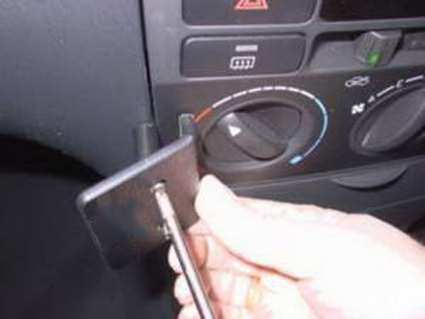

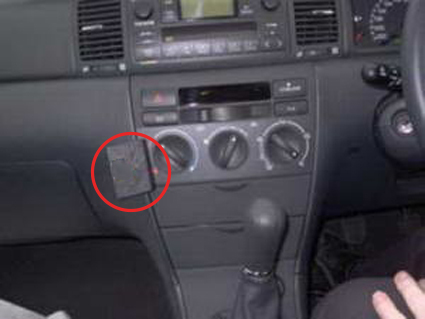

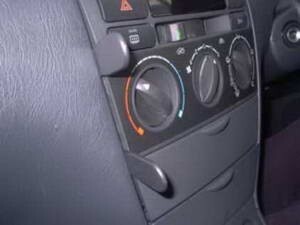

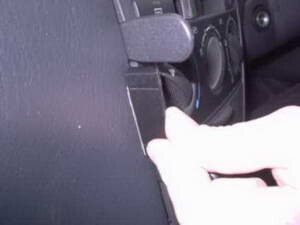

1. The attaching part (the smallest part) The ClicOn face plate 1. Press the thin end of the enclosed gap openers into the gap between the control panel and the dashboard to widen the gap. 2. Peel off the cover of the adhesive tape on Part 1. Press Part 1 into the gap between the gap openers. Press to the left on Part 1, away from the steering wheel, so the angled edge hooks under/behind the control panel and the adhesive attaches to the dashboard. Pull out the gap openers. 3. Open up the predrilled holes in with a screwdriver (Philips). Peel off the cover of the adhesive tape on Place onto Part 1 so the holes match. Screw onto Part 1 with the enclosed screws. NOTE! Screw the screws straight into Part 1, in the same angle as Part 1. The ClicOn is in place.
