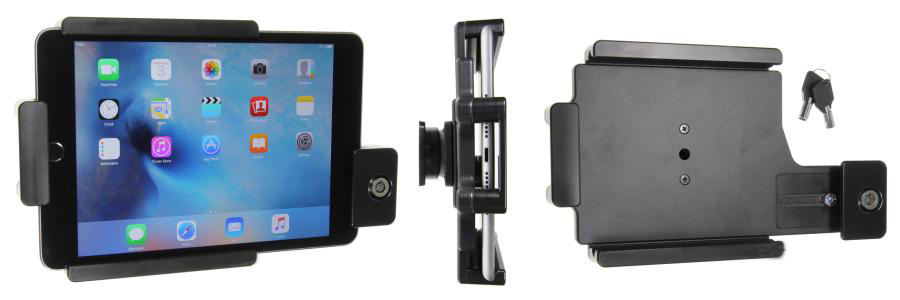

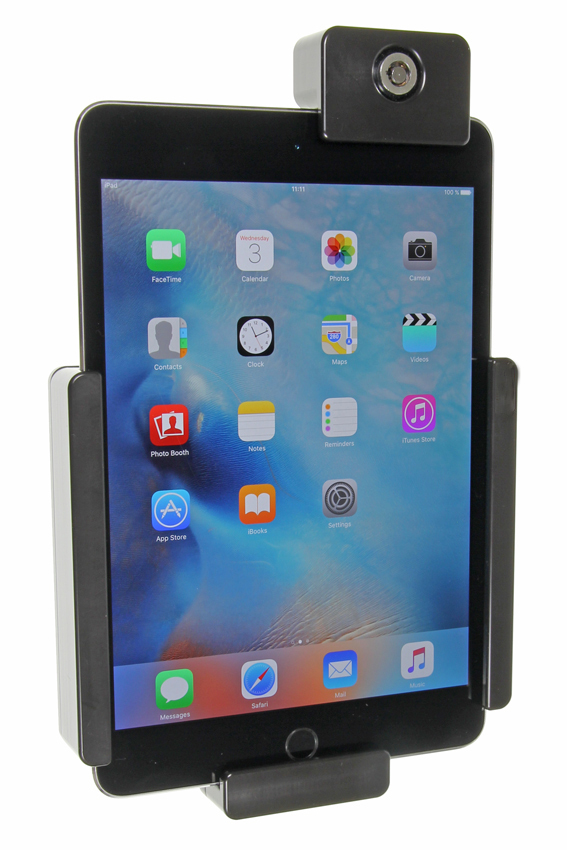

Key Lock Non Charging Adjustable Holder
Adjustable Width 180 to 210mm & Height 115 to138mm.
THE HOLDER
- Attach to our range of Bars, Headrests, Forklifts, Pedestals or Heavy Duty Suction Mounts to hold your device firmly & securely.
- Easy one-hand docking and removal.
- Comms ports, camera, and scanner buttons are accessible while docked.
FIRM & SECURE FIT
- Customised design to firmly fit your tablet without a case.
DESIGNED TO BE USED WITHOUT CASE
- Sliding adjustable top and key locking side. Width 180 to 210mm & Height 115 to 138mm.
- Measure the weight and height of the device. BEFORE ORDERING.
BUILT-IN KEY LOCK
- Built-in Key Lock supplied with two keys
- The holder is also suitable for retail stores and exhibitions where security is important.
- The AMPS Pattern Mount Plate on the holder can easily attach to our Pedestal Mounts, Headrest Mounts, Bar Mounts, Forklift Mounts or form part of your solution.
LANDSCAPE TO PORTRAIT
- All ClicOn holders come with a tilt swivel that can rotate 360° and tilt the holder 17° in any direction for optimal viewing and avoiding light reflection.
Please Note: Mounting a Tablet onto a ClicOn Dashmount is always done at the customer's own risk. Consideration should be given to the position and how firmly the dash mount holds the weight of the Tablet.
- Firm & Secure Fit
- Built-in Key Lock
- AMPS Pattern Mount Holes
- Landscape to Portrait Viewing
This Holder Fits | Devices between Width 180 to 210mm & Height 115 to138mm |
SKU | 539826 |
Barcode # | 7320285398269 |
Brand | ClicOn |
Shipping Weight | 0.2990kg |
Below you will find the installation instructions for the Key Lock Non Charging Adjustable Holder (SKU:539826), you can click on the images to open a larger version in a new tab
Step 1

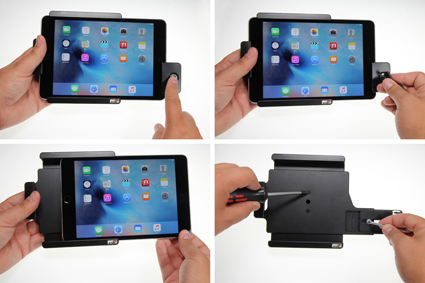

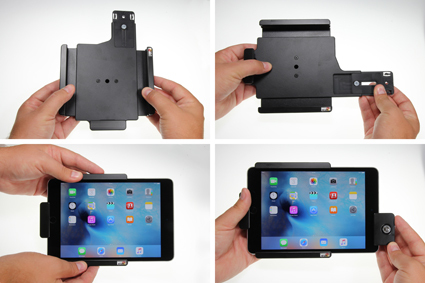

1. Adjust the holder to fit your device: Loosen the screws on the front side of the holder, as well as the screw on the adjustable arm. Pull the adjustable sides apart until you reach maximum width, and pull out the adjustable arm. Slide your device sideways into the holder. Press the sides together so the device is firmly in place. Place the locking block onto the adjustable arm and press it toward the device.
Step 3

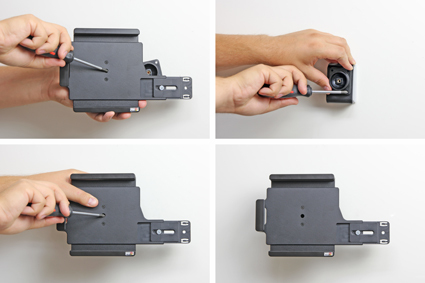

3. Install the holder: Loosen the screw in the centre of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but it still can be adjusted.
