Non Charging Adjustable Holder
Size: Width 62-77 mm Slot 2-10 mm
SKU:511666
Hard Wired Charging Adjustable Holder
To fit Width 62-77 mm Slot 6-10 mm.
THE HOLDER WITHOUT A MOUNT (Choose your Mount Separately)
- Attach the Holder to the Mount using the screws provided.
FIRM & SECURE FIT
- Customised design to firmly fit and hold your smartphone securely.
DESIGNED TO BE USED WITH STANDARD SKINS OR COVERS
- Dimension: To fit Width: 62-77 mm, Thickness 6-10mm.
- If you are using a skin or cover, ensure you measure the Height, Width and Thickness of the device with that skin or cover BEFORE ORDERING.
HARDWIRE INSTALL
- Dual USB Port Hard-Wire Charger that supports Qualcomm QC 3.0A quick charge.
- Quick charge only, works with compatible devices.
- Green USB Port: QC 3.0A for a quick charge.
- White USB Port: 2.4A for charging a second device.
AMPS PATTERN MOUNT HOLES
- Mounting the Holder onto a Car Dashboard Mount is easy with the AMPS hole mounting plate.
LANDSCAPE TO PORTRAIT
- All ClicOn holders come with a tilt swivel that can rotate 360° and tilt the holder 17° in any direction for optimal viewing and avoiding light reflection.
- The Holder without a Mount
- Firm & Secure Fit
- Hardwire Install
- AMPS Pattern Mount Holes
- Landscape to Portrait Viewing
| This Holder Fits | iPhone 6/6s/7/8/X/Xs/SE 2nd Gen |
| SKU | 527666 |
| Barcode # | 7320285276666 |
| Brand | ClicOn |
| Shipping Weight | 0.2600kg |

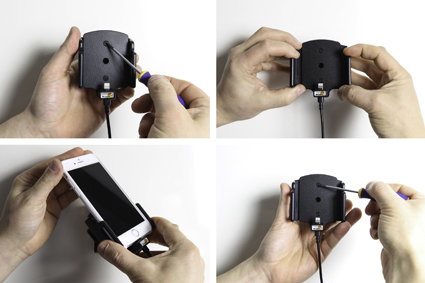

Below you will find the installation instructions for the Hard Wired Charging Adjustable Holder (SKU:527666), you can click on the images to open a larger version in a new tab
Step 1
1. Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12 Volt power supply in the vehicle that is controlled by the ignition switch. Attaching the holder:
Step 2
1. To adjust the holder for your device: Loosen the screws on the holder's front side, so the holder's sides can be adjusted. Place the device in the holder and press the sides together, so the device is firmly in place. Tighten the screws on the front side of the holder. 2. Loosen the screw in the centre of the holder to remove the tilt swivel attaching plate on the back. Place the attaching plate in the desired position. Screw the attaching plate into place with the enclosed screws.
Step 3
3. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place but still can be adjusted. NOTE! It is important to slide the device STRAIGHT DOWNWARD into the holder and STRAIGHT UPWARD out of the holder.
Step 4
4. The holder is in place.
Our Price
$132.90
One Year Warranty
Free Shipping Over $110.00
30 Days Return Policy
Australian Owned & Operated
