Headrest Mount - Small
Headrest Pole Dimensions 95 to 155mm
Mount Fit Details
Headrest Poles 95mm to 155mm
$69.00
THE HOLDER
FIRM & SECURE FIT
DESIGNED TO BE USED WITH OR WITHOUT A CASE
HARDWIRE INSTALL
AMPS PATTERN MOUNT HOLES
Mounting the Holder onto a Car Dashboard Mount is easy with the AMPS hole mounting plate.
LANDSCAPE TO PORTRAIT
This Holder Fits | Devices between 140 to 195mm high |
SKU | 727071 |
Barcode # | 7320287270716 |
Brand | ClicOn |
Shipping Weight | 0.4280kg |

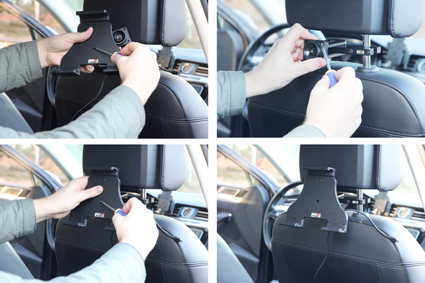

Below you will find the installation instructions for the Charging Adjustable Holder - Hard Wire Install (SKU:727071), you can click on the images to open a larger version in a new tab
1. Connect the charging cable to the device. Choose which way you want to use your device in the holder. Press the charging cable into place in the enclosed cable mount and place the cable mount over the predrilled holes on the back of the holder; choose the direction/side depending on how you want to run the cable. Make sure the line is long enough to be connected to the device. Screw the cable mount onto the holder with the enclosed screws.
2. Loosen the screw in the centre of the holder and remove the tilt swivel attaching plate on the back. Place the attaching container in the desired position and screw it into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but it can still be adjusted.
3. Place the device in the holder: Place the device's upper part under the holder's upper part. Press upward so the upper part of the holder slides upwards. Press the lower part of the device forward so the device is placed straight in the holder. Stop pressing upward so the upper part of the holder slides downward and rests on the device. Press downwards HARD on top of the holder, and at the same time, tighten the wingnut on the back of the holder FIRMLY. IMPORTANT: It is essential to press downward HARD on top of the holder and to draw the wingnut FIRMLY so the device is correctly held in place in the holder. Remove the device from the holder: Loosen the wingnut. Press the device upward so the upper part of the holder slides upward. Lift the machine down and out of the holder.
