THE MOUNT WITHOUT A HOLDER (Choose your Holder Separately)
NO HOLES, NO DRILLING
EASY INSTALL
CUSTOM DESIGN IN SWEDEN
| This Mount Fits | Audi A4 08-09/ S4 08-09/ Avant 08-09/ A5 07-09 |
| SKU | 654062 |
| Barcode # | 7320286540629 |
| Brand | ClicOn |
| Shipping Weight | 0.1000kg |
Below you will find the installation instructions for the Centre Mount (SKU:654062), you can click on the images to open a larger version in a new tab

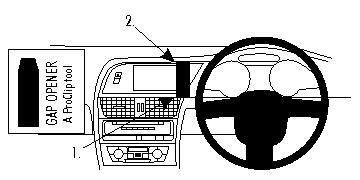

1. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the air vent and the trim, to widen the gap. Peel off the adhesive tape covers on the ClicOn. 2. Place the ClicOn above the gap between the frame surrounding the air vent and the dashboard, in the same position as shown in the picture. Press the angled edge on the lower part of the ClicOn into the gap next to the gap opener. 3. Press the upper part of the ClicOn into the gap between the panel surrounding the display and the dashboard overhang. Pull out the gap opener.
