Non Charging Adjustable Holder
Size: Width 62-77 mm Slot 2-10 mm
SKU:511666
Adjustable Holder with Cable Connect
Size: 62-77 mm Slot 2-10 mm.
THE HOLDER
- Attach to the Mount to hold your device firmly & securely using the screws provided. The Holder can also form part of your solution.
FIRM & SECURE FIT
- Customised design to firmly fit and hold your smartphone securely.

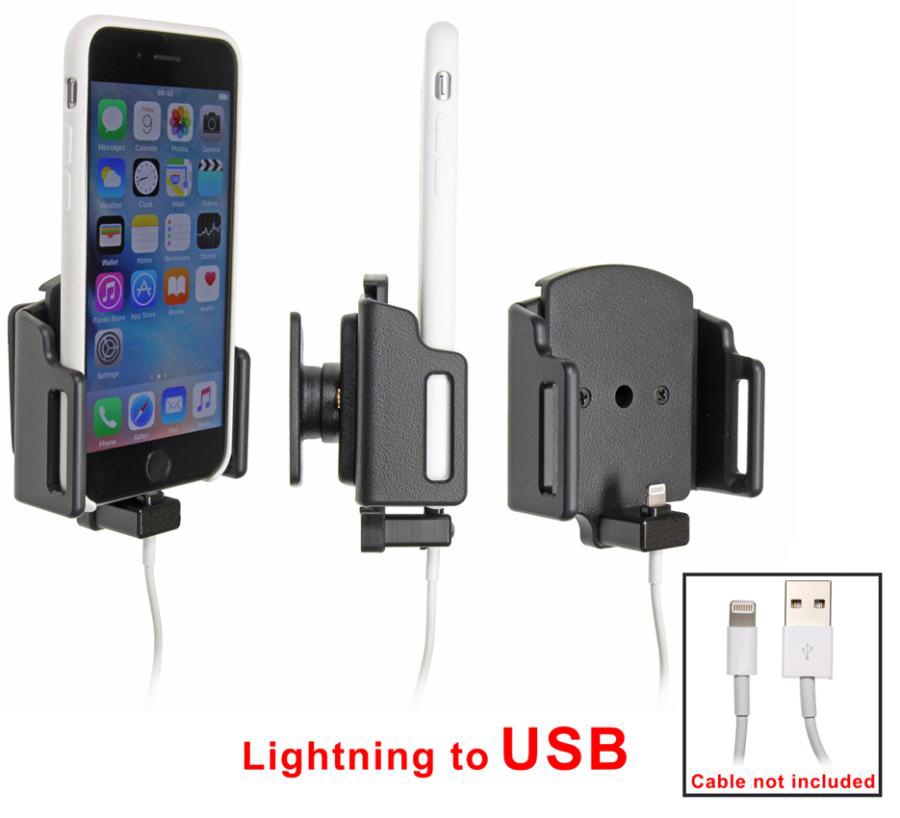

COMPATIBLE WITH APPLE LIGHTNING CABLE

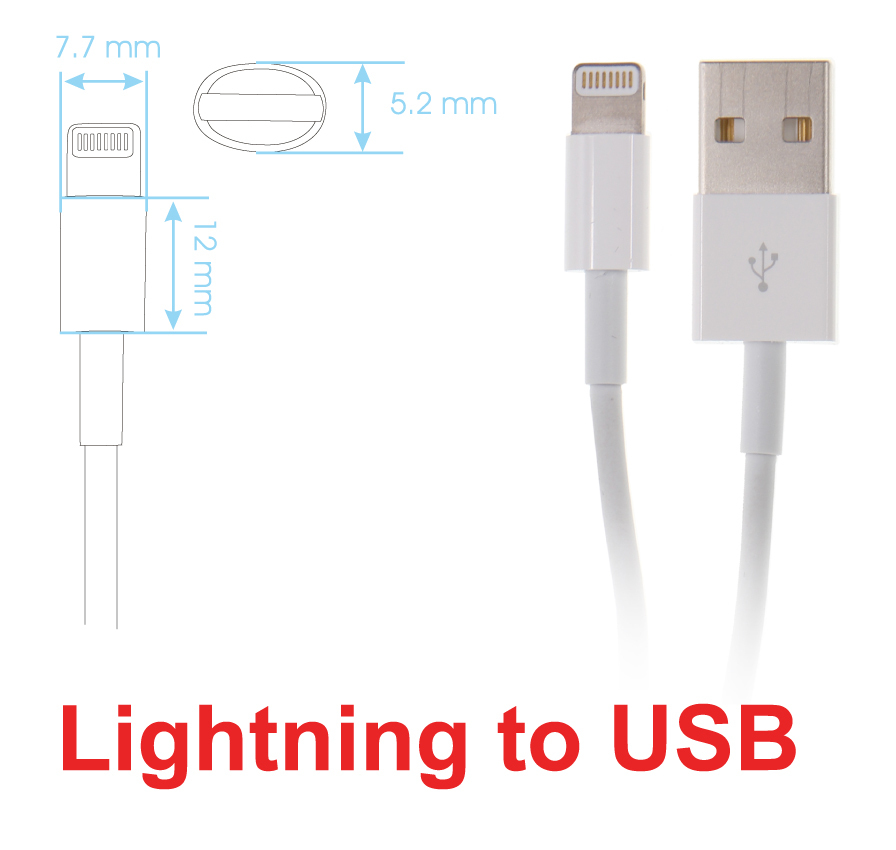

- The Apple Part No for the USB lighting Cable: MD818ZM/A. When using the lighting-to-USB cable with this holder, you can charge your iPhone by connecting it to the car's USB socket, or a plugin charger. Cable Not Included.
DESIGNED TO BE USED WITH STANDARD SKINS OR COVERS
- dimensions: Width: 62-77 mm, Thickness: 2-10 mm
- If you are using a skin or cover make sure you measure the Width and Thickness of the device with the skin or cover on, BEFORE ORDERING.
AMPS PATTERN MOUNT HOLES
- Mounting the Holder onto a Car Dashboard Mount is made easy with the AMPS hole mounting plate.
LANDSCAPE TO PORTRAIT
- All ClicOn holders come with a tilt swivel that can rotate 360° and tilt the holder 17° in any direction for optimal viewing and avoiding light reflection.
- The Holder
- Firm & Secure Fit
- Compatible with Apple Lightning Cable
- AMPS Pattern Mount Holes
- Landscape to Portrait Viewing
| This Holder Fits | iPhone 6/6s/7/8/X/Xs/ SE 2nd Gen |
| SKU | 514795 |
| Barcode # | 7320285147959 |
| Brand | ClicOn |
| Shipping Weight | 0.1430kg |
Below you will find the installation instructions for the Adjustable Holder with Cable Connect (SKU:514795), you can click on the images to open a larger version in a new tab
Step 1

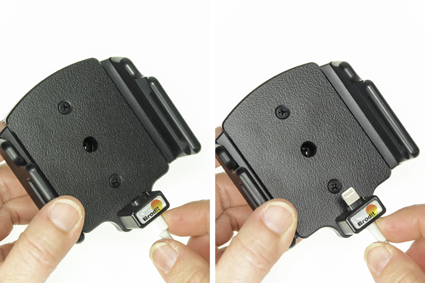

1. Place the cable's connector in the hole in the lower part of the holder. Carefully press the connector downward and forward, so it passes the locking and goes into the hole. Press until you hear/feel the connector snap into place in the holder.
Step 2

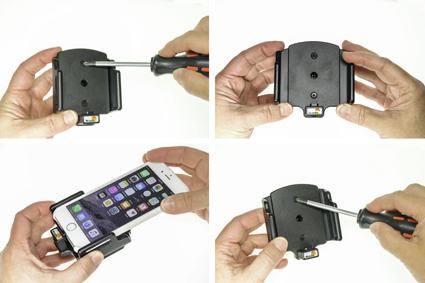

2. To adjust the holder for your device: Loosen the screws on the holder's front side, so the holder's sides can be adjusted. Place the device in the holder and press the sides together, so the device is firmly in place. Tighten the screws on the front side of the holder.
Step 3
3. Loosen the screw in the centre of the holder to remove the tilt swivel attaching plate on the back. Place the attaching plate in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firmly at first, then loosen it a bit, so the holder is firmly in place but still can be adjusted.
Step 4

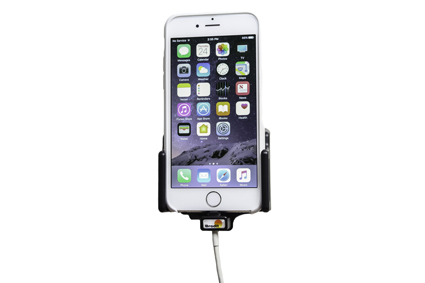

4. The holder is in place.
Our Price
$92.50
One Year Warranty
Free Shipping Over $110.00
30 Days Return Policy
Australian Owned & Operated
