THE MOUNT WITHOUT A HOLDER (Choose your Holder Separately)
NO HOLES, NO DRILLING
EASY INSTALL
CUSTOM DESIGN IN SWEDEN
| This Mount Fits | Daewoo Nubira Year(s):00-04 |
| SKU | 652759 |
| Barcode # | 7320286527590 |
| Brand | ClicOn |
| Shipping Weight | 0.1000kg |
Below you will find the installation instructions for the Angled Mount (SKU:652759), you can click on the images to open a larger version in a new tab

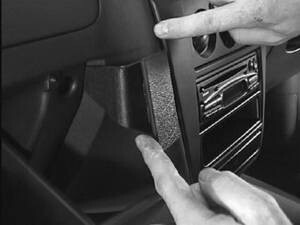

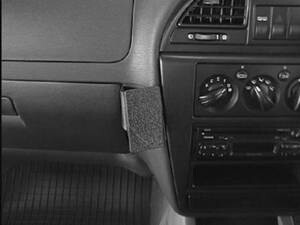

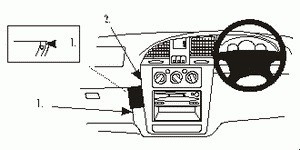

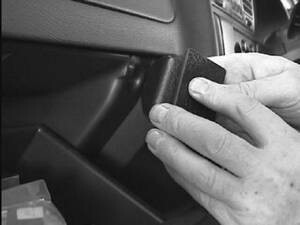

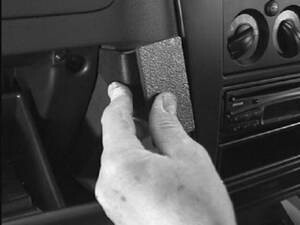

1. Open the glove compartment. Clean the surface at pos. 2.with the enclosed alcohol pad. Peel off the cover of the adhesive tape on the ClicOn. 2. Press the left part of the ClicOn into the gap at pos. 1. between the glove compartment and the dashboard. 3. Hook the right part of the ClicOn, with adhesive tape, into the gap at pos. 2.between the control panel and the dashboard. Press forward on the upper part of the ClicOn, then on the middle and the lower part of the ClicOn until you hear or see /feel it snaps into place.
