Non Charging Adjustable Holder - Large
Designed to be used WITH a Case
SKU:511479

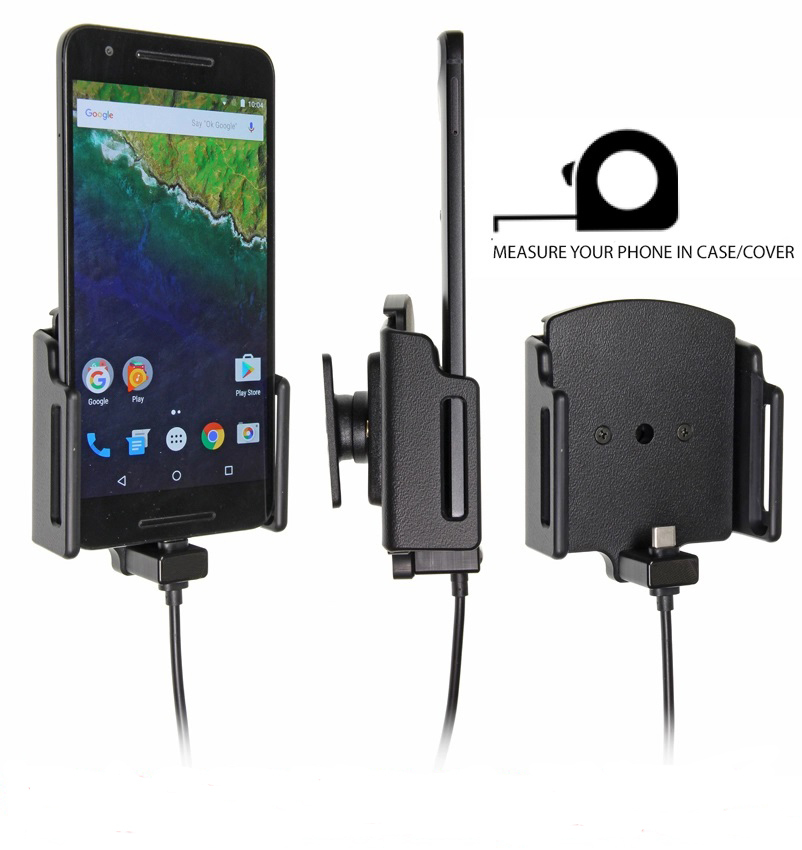

USB Cig-plug Charging Adjustable Holder
ONLY for Devices with Type C USB
THE HOLDER WITHOUT A MOUNT (Choose your Mount Separately)
- Attach the Holder to the Mount using the screws provided.
FIRM & SECURE FIT
- Customised design to firmly fit and hold your phone securely.
DESIGNED TO BE USED WITH A CASE
- Dimension: Width 75-89 mm Slot 9-13 mm.
- If you are using a case, measure the Width and Thickness of the device with the case on BEFORE ORDERING.
DUAL USB - A PORTS: QC 3.0A + 2.4A
- Dual USB Port Cig-Plug Charger that supports Qualcomm QC 3.0A quick charge.
- Quick charge only, works with compatible devices.
- Green USB Port: QC 3.0A for a quick charge.
- White USB Port: 2.4A for charging a second device.
AMPS PATTERN MOUNT HOLES
Mounting the Holder onto a Car Dashboard Mount is easy with the AMPS hole mounting plate.
LANDSCAPE TO PORTRAIT
- All ClicOn holders come with a tilt swivel that can rotate 360° and tilt the holder 17° in any direction for optimal viewing and to avoid light reflection.
Please Note: If your car has a USB socket, you can disconnect the cigarette plug from the cable and connect directly to the USB connector in your vehicle to Sync audio files from your device into your head unit. The car stereo must support this feature. Test that your stereo is compatible by connecting your device to the stereo with the USB/charging cable that comes with your device.
- The Holder without a Mount
- Firm & Secure Fit
- Dimension: Width 79-85 mm Slot 9-13 mm
- Dual Cig Plug USB-A Ports: QC 3.0A + 2.4A
- AMPS Pattern Mount Holes
- Landscape to Portrait Viewing
| This Holder Fits | Width 75-89 mm, Slot 9 -13 mm Samsung: A / Note / S Series |
| SKU | 521844 |
| Barcode # | 7320285218444 |
| Brand | ClicOn |
| Shipping Weight | 0.1800kg |
Below you will find the installation instructions for the USB Cig-plug Charging Adjustable Holder (SKU:521844), you can click on the images to open a larger version in a new tab
Step 1
1. To adjust the holder for your device: Loosen the screws on the holder's front side, so the holder's sides can be adjusted.
Step 2
2. Place the device in the holder and press the sides together, so the device is firmly in place. Adjust the positioning of the charging connector, so it connects properly to the phone. Lock the charging connector into position by screwing the screw into the hole on the side of the charging connector block. Remove the device carefully. Tighten the screws on the front side of the holder.
Step 3
3. To install the holder: Loosen the screw in the centre of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching container in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place but still can be adjusted.
Step 4
4. The holder is in place.
Warranty
One Year Warranty applies to products purchased directly from HoldMyPhone or an authorised re-seller.
During this warranty period if the product is defective in workmanship or materials HoldMyPhone will replace it with a model of equal value.
Damages caused by improper use, accident, unauthorized repair or modifications are not covered under this warranty.
