USB Cig-plug Charging Adjustable Holder
ONLY for Devices with Type C USB
THE HOLDER
- Attach to the Mount to hold your device firmly & securely using the screws provided. The Holder can also form part of your solution.
FIRM & SECURE FIT
- Customised design to firmly fit and hold your phone securely.
DESIGNED TO BE USED WITH A CASE

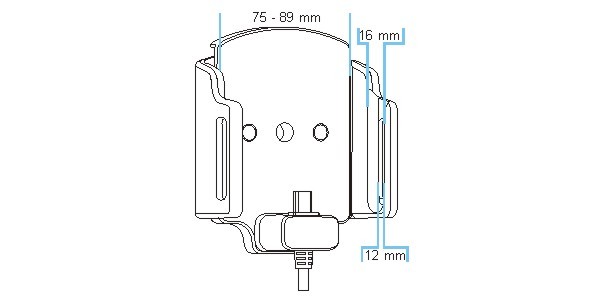

- Dimension: Width 75-89 mm Slot 12-16 mm.

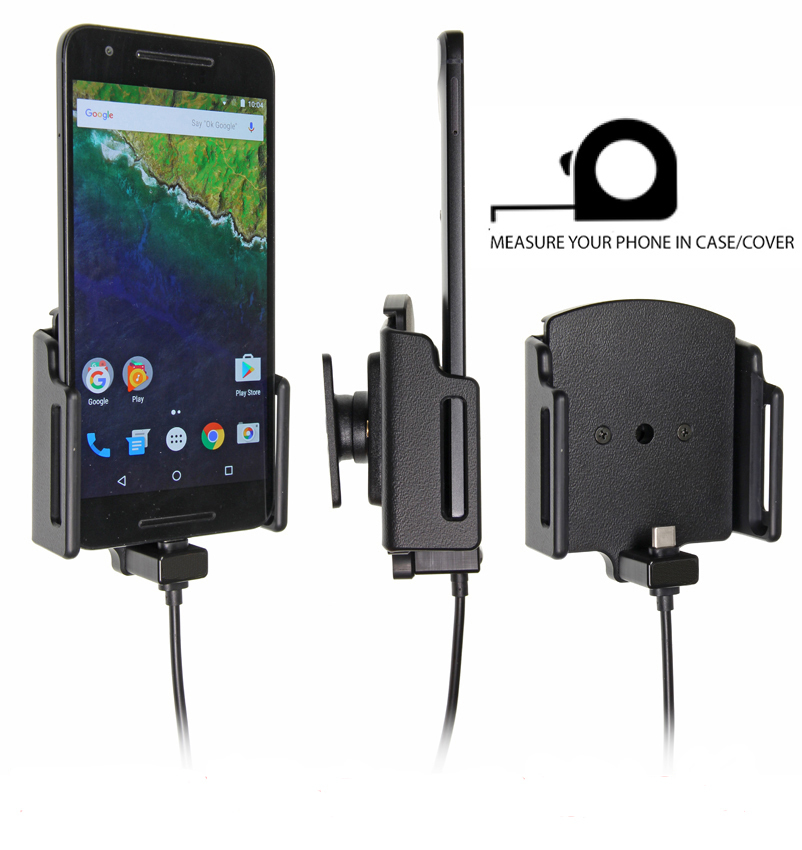

- If you are using a case make sure you measure the Width and Thickness of the device with the case on, BEFORE ORDERING.

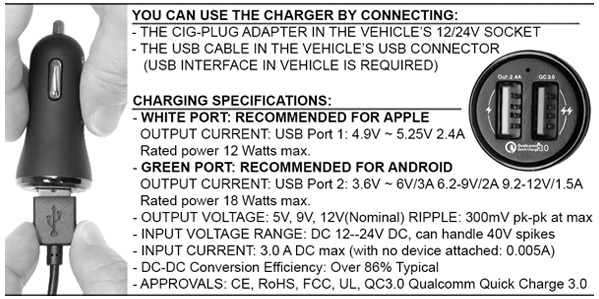

DUAL USB - A PORTS: QC 3.0A + 2.4A
- Dual USB Port Cig-Plug Charger that supports Qualcomm QC 3.0A quick charge.
- Quick charge only, works with compatible devices.
- Green USB Port: QC 3.0A for a quick charge.
- White USB Port: 2.4A for charging a second device.
AMPS PATTERN MOUNT HOLES
Mounting the Holder onto a Car Dashboard Mount is made easy with the AMPS hole mounting plate.
LANDSCAPE TO PORTRAIT
- All ClicOn holders come with a tilt swivel that can rotate 360° and tilt the holder 17° in any direction for optimal viewing and to avoid light reflection.
Please Note: If your car has a USB socket, you can disconnect the cig-plug from the cable to connect directly to the USB connector in your vehicle to Sync audio files from your device into your head unit. The car stereo must support this feature. Test that your stereo is compatible by connecting your device to the stereo with the USB/charging cable that comes with your device.
- The Holder
- Firm & Secure Fit
- Dimension: Width 75-89 mm Slot 12-16 mm
- Dual Cig Plug USB-A Ports: QC 3.0A + 2.4A
- AMPS Pattern Mount Holes
- Landscape to Portrait Viewing
This Holder Fits | Width 75-89 mm, Slot 12 -16 mm USB Type C |
SKU | 521845 |
Barcode # | 7320285218451 |
Brand | ClicOn |
Shipping Weight | 0.1750kg |
Below you will find the installation instructions for the USB Cig-plug Charging Adjustable Holder (SKU:521845), you can click on the images to open a larger version in a new tab
![Installation Image](/assets/alt_8/521845.jpg?20230324114131)
Step 2

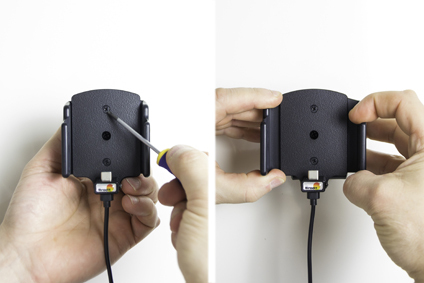

2. Place the device in the holder and press the sides together, so the device is firmly in place. Adjust the positioning of the charging connector, so it connects properly to the phone. Lock the charging connector into position by screwing the screw into the hole on the side of the charging connector block. Remove the device carefully. Tighten the screws on the front side of the holder.
![Installation Image](/assets/alt_9/521845.jpg?20230324114135)
Step 3
3. To install the holder: Loosen the screw in the centre of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching container in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place but still can be adjusted.
Warranty
One Year Warranty applies to products purchased directly from HoldMyPhone or an authorised re-seller.
During this warranty period if the product is defective in workmanship or materials HoldMyPhone will replace it with a model of equal value.
Damages caused by improper use, accident, unauthorized repair or modifications are not covered under this warranty.
