Non Charging Holder with Case
With Brodit Magnetic Case
SKU:711405

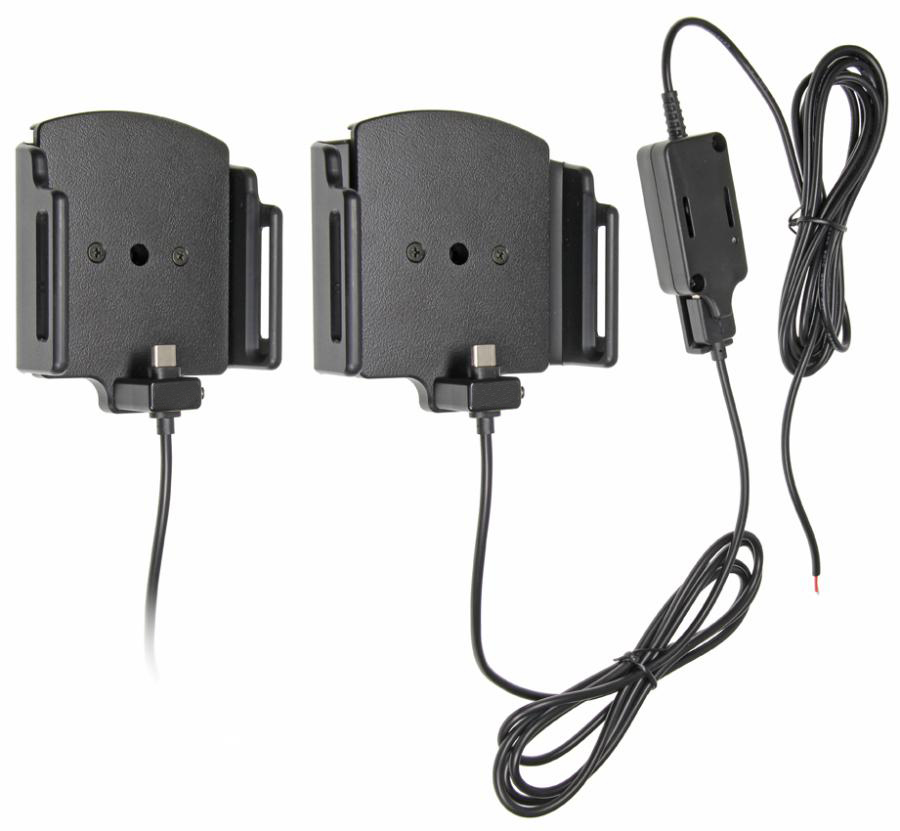

Hard Wired Charging Adjustable Holder
ONLY for Devices with Type C USB
THE HOLDER
- Attach to the Mount to hold your device firmly & securely using the screws provided. The Holder can also form part of your solution.
FIRM & SECURE FIT
- Customised design to firmly fit and hold your phone securely.
DESIGNED TO BE USED WITH A CASE
- Dimension: Width 75-89 mm, Slot 6-10 mm

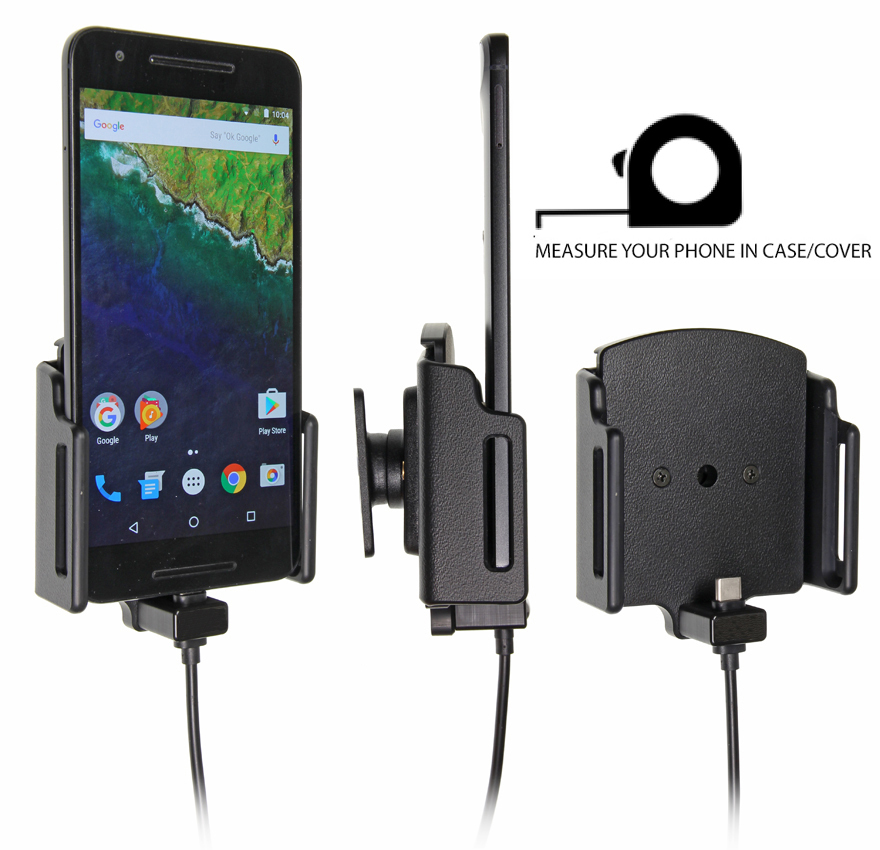

- If you are using a case make sure you measure the Width and Thickness of the device with the case on, BEFORE ORDERING.
HARDWIRE INSTALL
- Dual USB Port Hard-Wire Charger that supports Qualcomm QC 3.0A quick charge.
- Quick charge only, works with compatible devices.
- Green USB Port: QC 3.0A for a quick charge.
- White USB Port: 2.4A for charging a second device.
AMPS PATTERN MOUNT HOLES
- Mounting the Holder onto a Car Dashboard Mount is made easy with the AMPS hole mounting plate.
LANDSCAPE TO PORTRAIT
- All ClicOn holders come with a tilt swivel that can rotate 360° and tilt the holder 17° in any direction for optimal viewing and to avoid light reflection.
Please Note: This Holder connects directly to the vehicle's power. A professional installer is recommended.
- The Holder
- Firm & Secure Fit
- Dimension: Width 75-89 mm, Slot 6-10 mm
- AMPS Pattern Mount Holes
- Landscape to Portrait Viewing

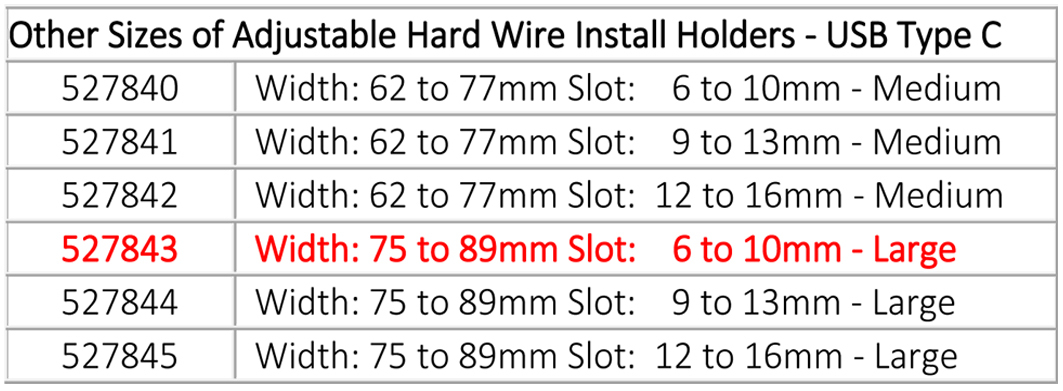

| This Holder Fits | Width 75-89 mm, Slot 6-10mm |
| SKU | 527843 |
| Barcode # | 7320285278431 |
| Brand | ClicOn |
| Shipping Weight | 0.1100kg |
Below you will find the installation instructions for the Hard Wired Charging Adjustable Holder (SKU:527843), you can click on the images to open a larger version in a new tab
Step 1
1. Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12/24 Volt power supply in the vehicle controlled by the ignition switch.
Step 2

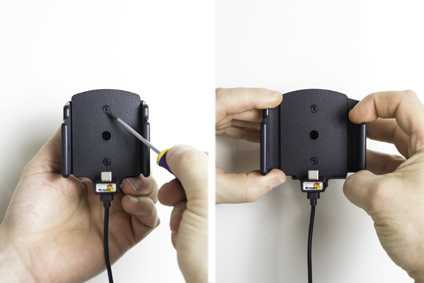

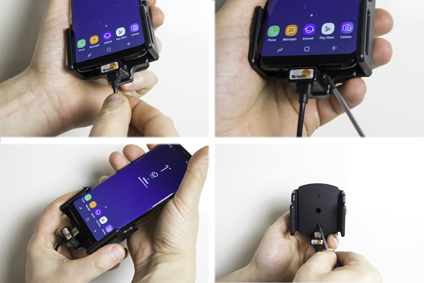

How to mount the holder: 1. To adjust the holder for your device: Loosen the screws on the holder's front side, so the holder's sides can be adjusted. 2. Place the device in the holder and press the sides together, so the device is firmly in place. Adjust the positioning of the charging connector, so it connects properly to the phone. Lock the charging connector into position by screwing the screw into the hole on the side of the charging connector block. Remove the device carefully. Tighten the screws on the front side of the holder.
Step 3

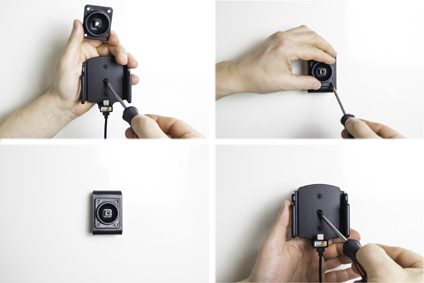

3. To install the holder: Loosen the screw in the centre of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching container in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place but still can be adjusted.
Step 4

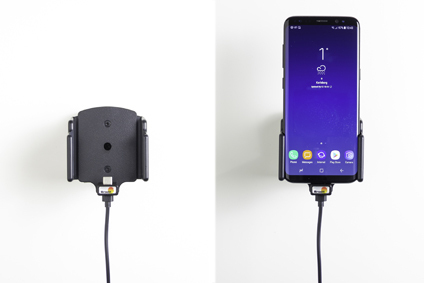

4. The holder is in place.
Warranty
One Year Warranty applies to products purchased directly from HoldMyPhone or an authorised re-seller.
During this warranty period if the product is defective in workmanship or materials HoldMyPhone will replace it with a model of equal value.
Damages caused by improper use, accident, unauthorized repair or modifications are not covered under this warranty.
Our Price
$132.90
One Year Warranty
Free Shipping Over $110.00
30 Days Return Policy
Australian Owned & Operated
