THE MOUNT WITHOUT A HOLDER (Choose your Holder Separately)
NO HOLES, NO DRILLING
EASY INSTALL
CUSTOM DESIGN IN SWEDEN
| This Mount Fits | Ford Ka Year(s):97-08 |
| SKU | 652476 |
| Barcode # | 7320286524766 |
| Brand | ClicOn |
| Shipping Weight | 0.1000kg |
Below you will find the installation instructions for the Centre Mount (SKU:652476), you can click on the images to open a larger version in a new tab

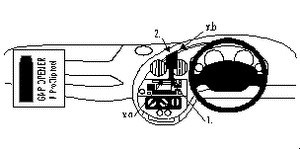

1. Clean the surface at pos. 1. and 2. with the enclosed alcohol pad. Peel off both adhesive tape covers on the ClicOn. Press the thin end of the enclosed gap opener into the gap between the stereo and the panel frame at pos. x.a. to widen the gap. 2. Press the lower part of the ClicOn into the gap at pos. 1. next to the gap opener. Pull out the gap opener. 3. Press the thin end of the gap opener into the gap between the panel frame and the padded dashboard at pos. x.b. Hook the upper part of the ClicOn into the at pos. 2.next to the gap opener. Pull out the gap opener. The Clicon is in place.
